Mast Height 9m:

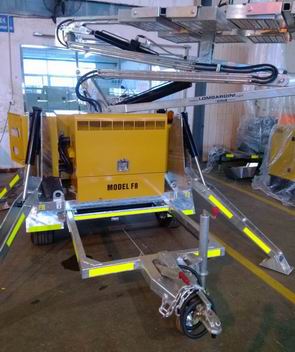

The original integral trailer frame is with excellent structural strength and rigidity
the small size realizes max 6 sets loading into 40 feet container
Options for LED lights available.
Can be turned on or off separately t
GTLT 09F4
| Standard Items | GTLT 09F8 | GTLT 09F4 |
| Machine Size (L * W * H) | 3100 * 1800 * 2495 | |
| Mast Height(m, Fully Extended) | 9 | |
| Weight (Dry, kg) | 1800 ( without fuel ) | |
| Engine model | KD440(Kohler, Italy) | |
| Engine Characters | Diesel, 4 cycle, In line, Air coolant Diesel | |
| Frequency(Hz) | 50/60 | |
| Speed(rpm) | 3000/3600 | |
| Continued Power(KW) | 4.8/5.2 | |
| Engine Aspiration | Naturally aspirated | |
| Number of Cylinders | 1 | |
| Combustion Type | Direct Injection | |
| Engine Aspiration | Natural | |
| Alternator | SP10MG (Linz,Italy) | |
| Alternator Characters | Brushless & Single phase | |
| Rating Voltage (V) | 230(AC) | |
| Alternator Insulation | Class H | |
| Alternator Protection Grade | IP23 | |
| Fuel Tank Capacity | 80liters (21 US Gallons) | |
| Fuel Tank Operating Hours | 156hours | 52hours |
| Type of Lights | LED | Food |
| Number & Power of Lights | 8×300W | 4×1000W |
| Mast extension | Manually | |
| Mast Rotation | ±165° hydraulic driving | |
| Light Bar Tilt | Electric operation | |
| Stabilizing Support & Number | Hydraulic operation,4 foldable | |
| Suspension & Braking System | Hexagonal rubber axle with drum brakes | |
| Hitch | Ball or O ring & stable hitch in height | |
| Acoustic Pressure | 72dB(A) at 7 meters away | |
Applicable for most of inside and outside place. Asphalt paving, disaster relief, repair
and maintenance of water supply, gasoline, tunnels, and mines, waste disposal, parking
lot, wharf, civil and military airport, as well as various illuminations for combat readiness.
Installed with generator, the light tower works with convenient power supply
Night construction condition has been improved to raise working efficiency and speed.
Characteristics:
Composed by eight 300w LED light or four 1000W Metal halides, have high lumen output,
good color rendition and overall lighting, long lamp life.
Lamp frame can rotate horizontal and freely, each lamp can vertical adjust lonely.
Articulated mast with staleness valve, avoid to drop with impact. Mast can extend to
9 meters
（height can be customized）.
Installed with generator, one tank gasoline can last 150 hours or 50 hours, subject to
different lights.
Equipped with big tyres and brake system, increasing its capacity to climb and trail to
move on uneven road. Big tyres also increase touchdown areas to oppose wind beating.
Using waterproof electrical boxes to avoid rain, suit for bad condition
Some features of machines
l This light tower is energy-efficient, when equipped with 8*300W high efficiency LED
light with each of the light can reach 39000 LM, Protection class IP66. And
irradiation distance up to 100 meters.
l The innovative design of the four-bar linkage mast can be extended to 9 meters,
which is worked by hydraulic cylinder with balance valve, ca be lifted more smoothly,
and can be kept in the setting position for a long time.
l The original integral trailer frames structure is with excellent structural strength and
rigidity, and the small size realizes max 6 sets loading into a 40 feet container.
l The irradiation range is broad: the mast can be rotated within +/- 165°, and the
irradiation angle can be adjusted by hydraulic controlling.
l 75 dB(A) @ 7 meters: the air-cooled genset is with noise proof canopy.
l Full hot dip galvanized frame, mast and legs, could be against harsh environment.
l Four independently operated hydraulic legs can support stably and reliably even on
rough ground. This makes it capable to withstand a force of Level 9 Wind.
l The IP65 wire harness and control baox, and full fplu-in electrical connections,
makes maintenance easy to do.
